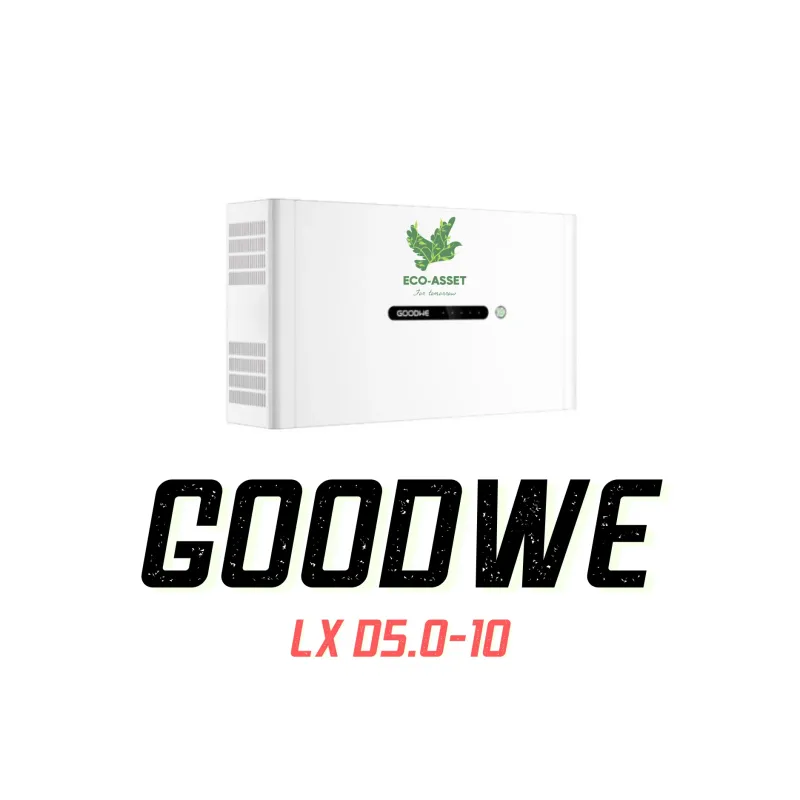

GoodWe Lynx D 5.0-10 - mounting base for LYNX D battery modules, V2 connector

Safe and practical HV energy storage for PV backup power and greater energy autonomy

GoodWe's Lynx D series of high-voltage energy storage units provides greater safety and high performance and reliability thanks to reliable LFP battery technology. A wide range of capacities will meet the needs of home and smaller industrial PV systems. Stackable batteries, auto-detection of battery modules, easy and quick installation and the ability to add more new battery modules to your system allow you to expand your system at any time. Take advantage of the greater potential of solar energy by combining the Lynx D battery with GoodWe hybrid inverters and smart grid-ready household appliances such as heat pumps and electric vehicle chargers to achieve energy independence and reduce energy costs while providing trouble-free, continuous power.

The Lynx D series enables remote diagnosis and updating of the entire energy storage system. In the event of a sudden voltage drop, the unit is automatically restarted. Dual control via BMS and DC/DC converter management system.

The Lynx D series features a modular design for parallel connection, providing greater flexibility in energy storage solutions. Stackable batteries, auto-detection of battery modules, easy and quick installation and the ability to add more new battery modules to the system allow for expansion at any time.

Modular design for parallel connection

Possibility of easy and fast expansion by adding new modules to an existing system

Compatible with GoodWe BT/ET/ET G2 inverters (up to 30kW)

Reliable LFP battery cells

Remote diagnostics and updates via inverter

Up to 8 battery modules per system (up to 40kWh)

Lithium-iron battery cells (LFP) are reliable and safe to use due to their high chemical and thermal stability. Going beyond standard safety standards for lithium batteries, the system meets the requirements of the advanced VDE 2510-50 standard.

Usable energy (kWh): 5

Cell type: LFP (LiFePO4)

Nominal voltage: (V) Charge: 435; Discharge: 380

Output voltage: (V) 320 ~ 480

Nominal power (kW): 3

Peak power: 5kW, 10s

Operating temperature range (°C): Charging: 0 ~ +53; Discharging: -20 ~ +53

Relative humidity: 0 - 95%

Max. operating altitude (m): 4000

Communication: CAN

Weight (kg): 52

Dimensions (W x H x D mm): 700 × 380 × 170

IP rating: IP66

GoodWe is a world leader in photovoltaic inverters and energy storage solutions, listed on the Shanghai Stock Exchange. The installed capacity of their inverters is 23 GW in more than 100 countries. With more than 2,000 employees in 15 countries, the company is a leader in hybrid inverter manufacturing according to a 2020 Wood Mackenzie report. GoodWe has also been recognized by IHS Markit as one of the top ten inverter manufacturers, winning six consecutive awards in TUV Rheinland's “All Quality Matters” competition.
