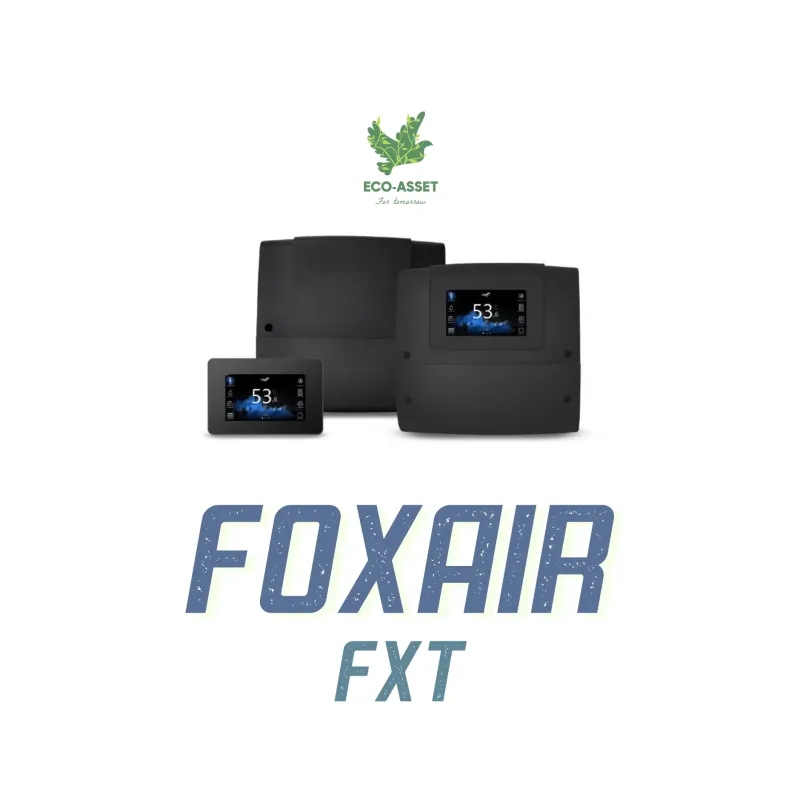

FoxAIR - FXT - Controller (set) FoxTouch

FoxTOUCH controller is designed to control the heating system and heat sources such as heat pumps, boilers

gas, oil, electric. Control of hybrid solutions.

Functions:

Control of a cascade of heat pumps

Quick and efficient configuration of basic parameters as soon as you connect to the heat source and heating circuits using the

Using the built-in WIZARD Installation Assistant

Management of all heating circuits and possibility of expansion with additional mixer circuits

Weather control (automatic temperature setting of heating circuits depending on the outside temperature)

Time schedules for lowering the preset temperature of the circuits and ON/OFF time schedule for the main heat source

and DHW tank

Support for wireless and wired room thermostats of each circuit

Installation management from the ecoNET Internet system. Remote update and online service support.

Software update with microSDHC card

Technical specifications:

Power supply 230 V, 50 Hz / 0.04 A

Protection class of the module IP 20

Operating temperature /Storage temperature: 0...50°C/0...65°C

Module connectors Screw terminals on the supply voltage side - 0.75...2.5 mm2

Screw terminals on the control voltage side - 0.14...1.0 mm2

Display Color capacitive touch screen, TFT 4.3” 480x272 pix,

External dimensions of the module 234x225x64 mm

Weight 1.2

Standards PN-EN 60730-2-9, PN-EN 60730-1

Pollution degree 2-degree according to PN-EN 60730-2-9

Mounting method Wall mounted, on a stand, with a magnet

Measuring range of the sensor

Temperature sensor type CT-10 /

CT6-P; Accuracy

0...100°C / -40...+40°C; ±2°C

Panel dimensions front: 144.4 /97.5

side: 21/10

rear: 136/89
